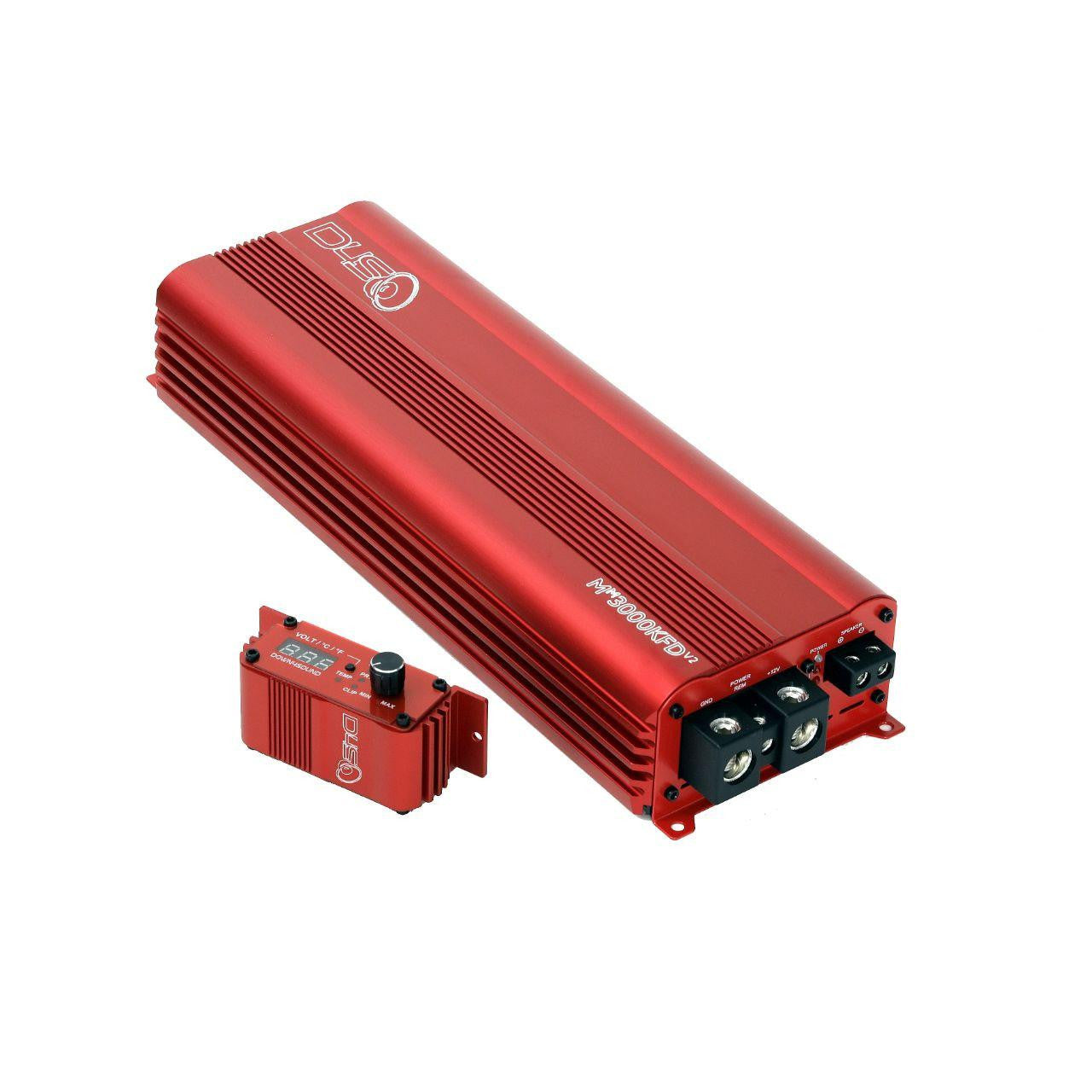

Description
-
RMS Power Output:
- 3000W x 1 @ 1 Ohm
- 1888W x 1 @ 2 Ohms
- 1234W x 1 @ 4 Ohms
- Frequency Response: 10Hz - 26.4KHz
- High Pass Filter: 20Hz - 800Hz (Multiplier x1, x10: 200Hz - 8KHz)
- Low Pass Filter: 50Hz - 800Hz (Multiplier x1, x10: 500Hz - 8KHz)
- Input Sensitivity: 6V - 0.2V
- Signal-to-Noise Ratio: 89dB
- Total Harmonic Distortion: Less than 0.1%
- Operating Voltage: 9V - 15.5V
- Fuse Rating: 250A
- Dimensions: 16.93" L x 4.88" W x 2.25" H
- Full Range Digital Amplifier: Powers subwoofers, mids, and highs with clean, distortion-free audio.
- High-Speed MOSFET Power Supply: Ensures stable and efficient power delivery.
- Variable High Pass Filter: Adjustable from 20Hz to 800Hz for precise control over your sound.
- Variable Low Pass Filter: Adjustable from 50Hz to 800Hz for optimized bass response.
- Crossover Multiplier x10: Expands filter ranges up to 8KHz for advanced tuning flexibility.
- Bandpass Filter Capability: Allows for tailored audio customization for balanced and precise sound.
- 4-Way Protection Circuits: Safeguards against thermal issues, high/low voltage, speaker shorts, and DC offset.
- Clip Light Indicators: Real-time alerts on both the amplifier and remote bass knob to ensure distortion-free operation and protect your speakers.

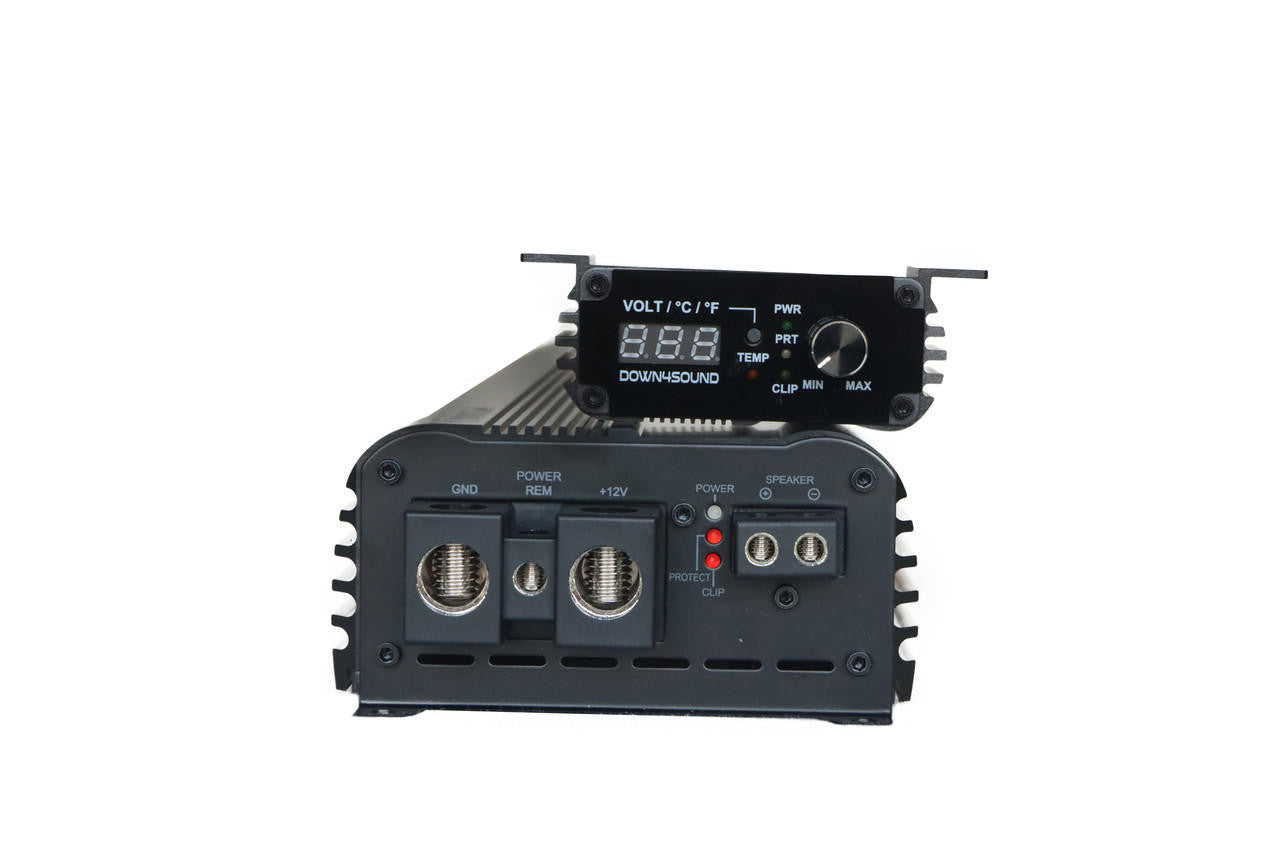

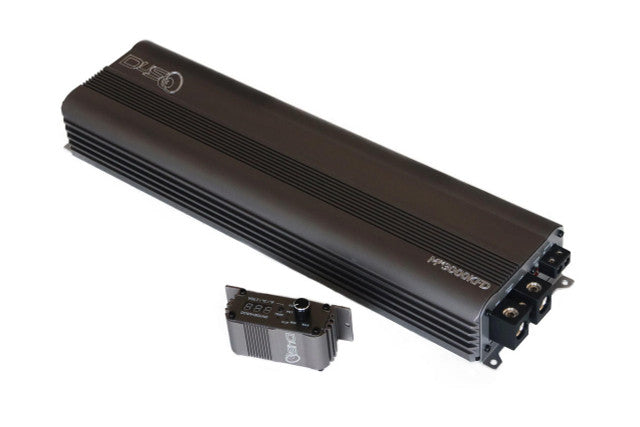

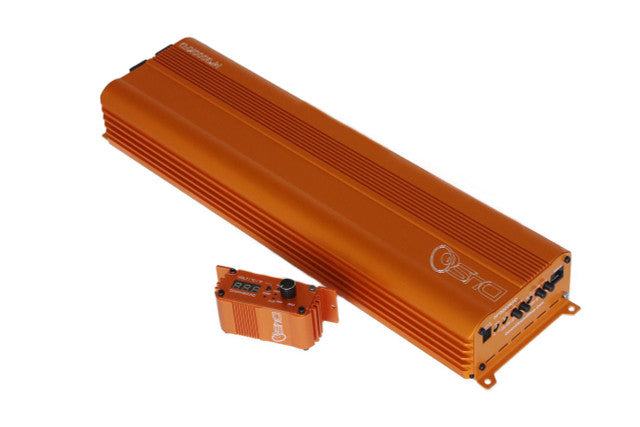

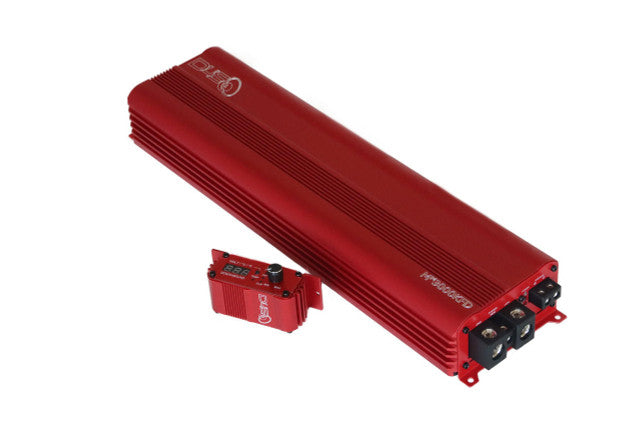

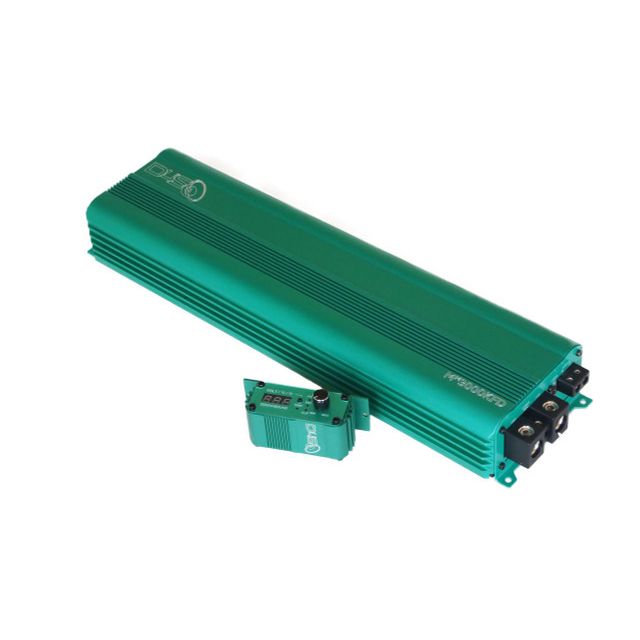

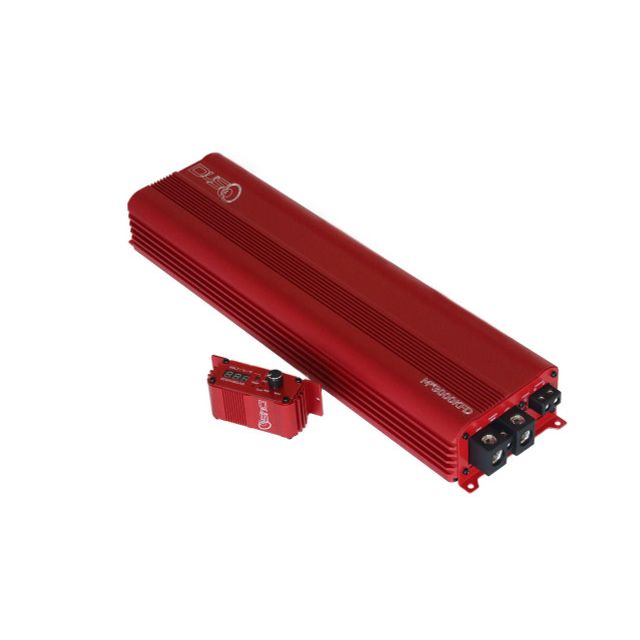

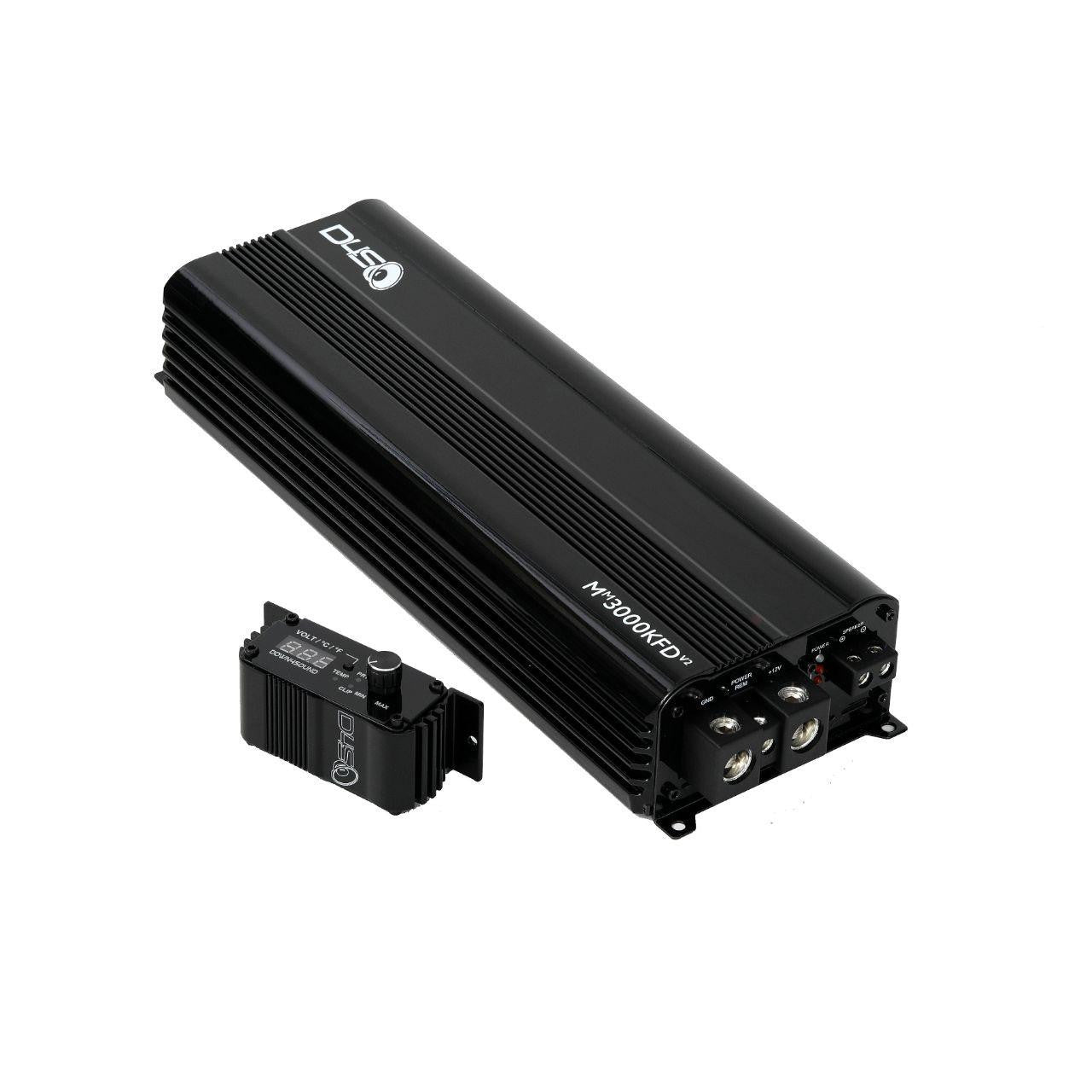

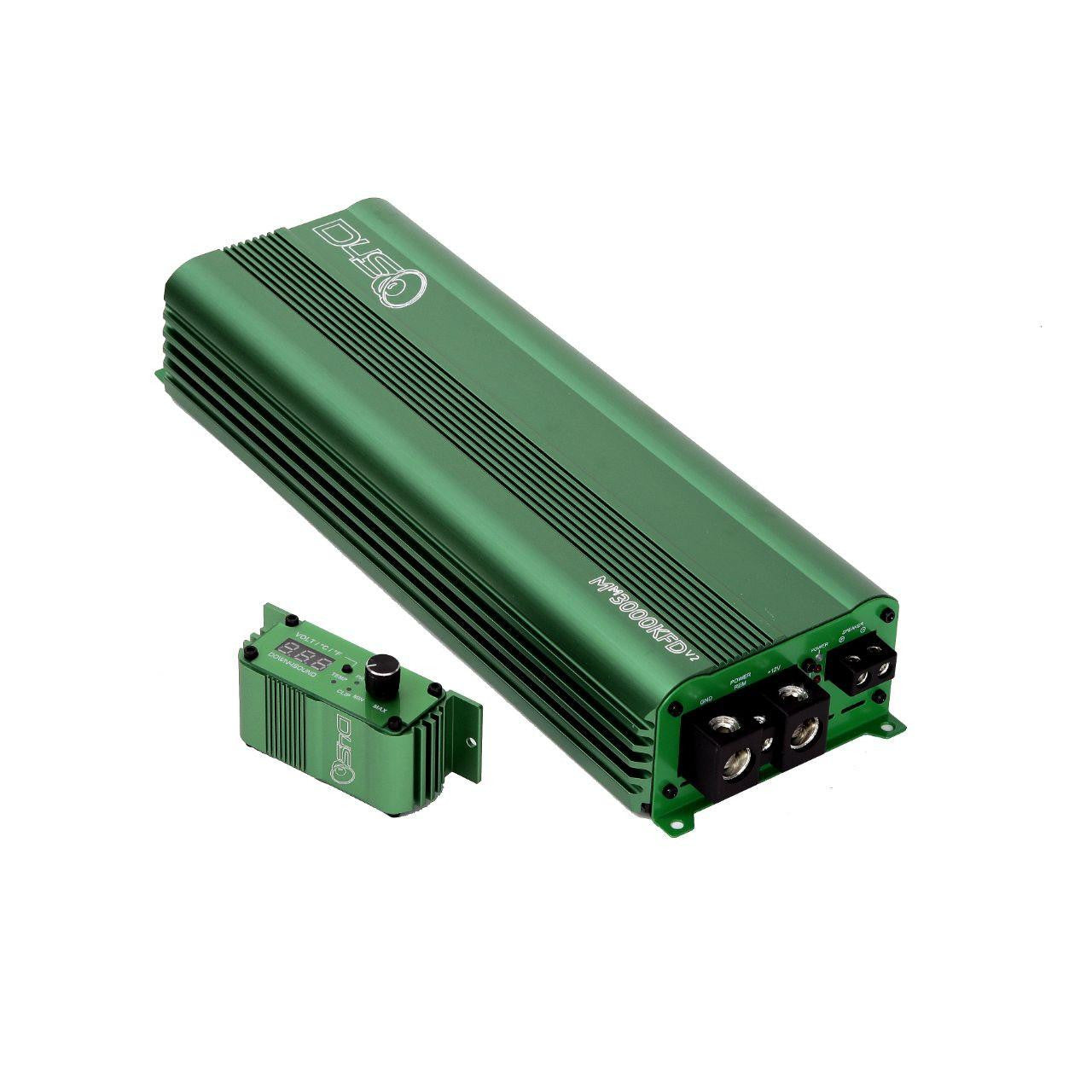

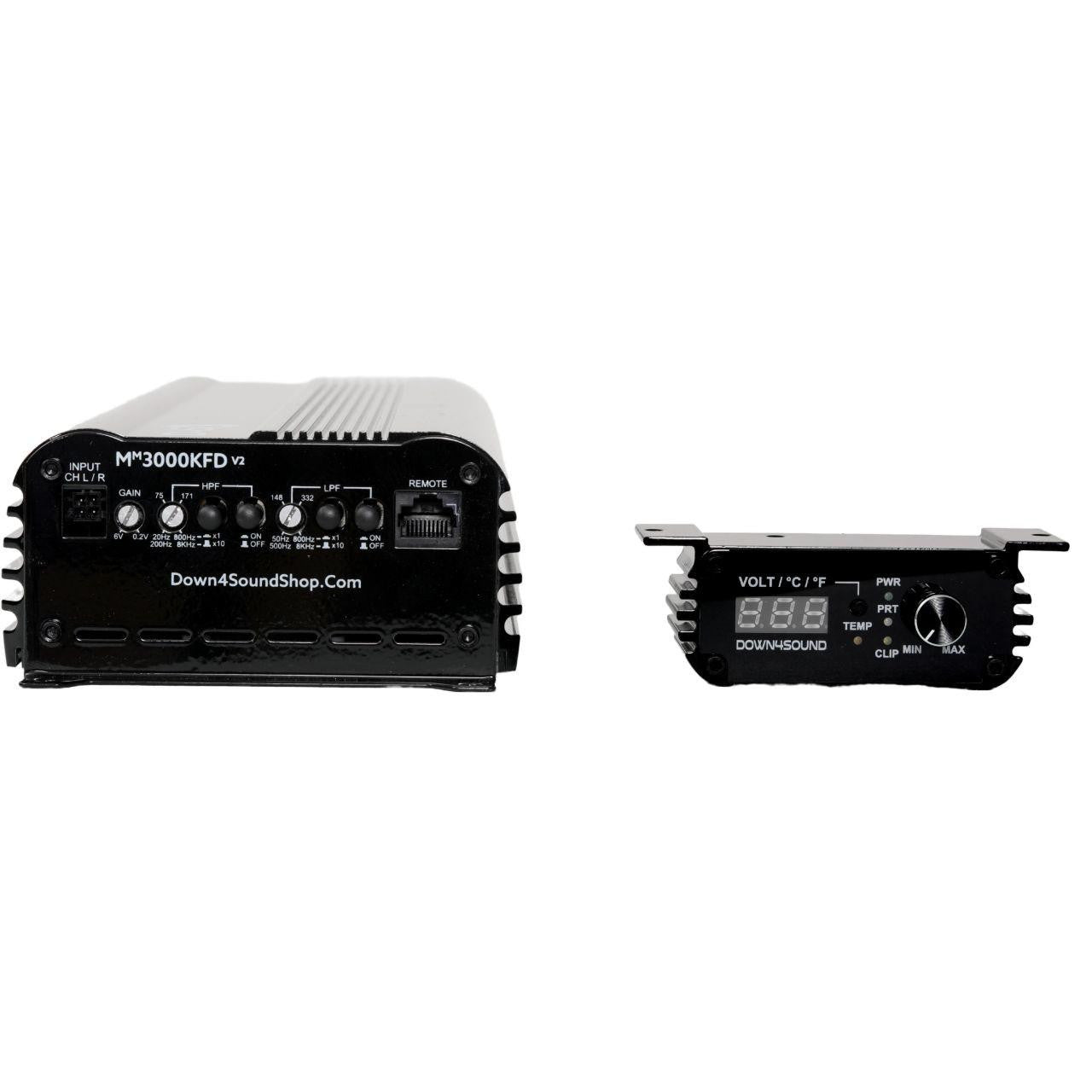

- Remote Bass Knob: High-quality aluminum design with integrated voltmeter, amplifier temperature display, and clipping indicator.
-

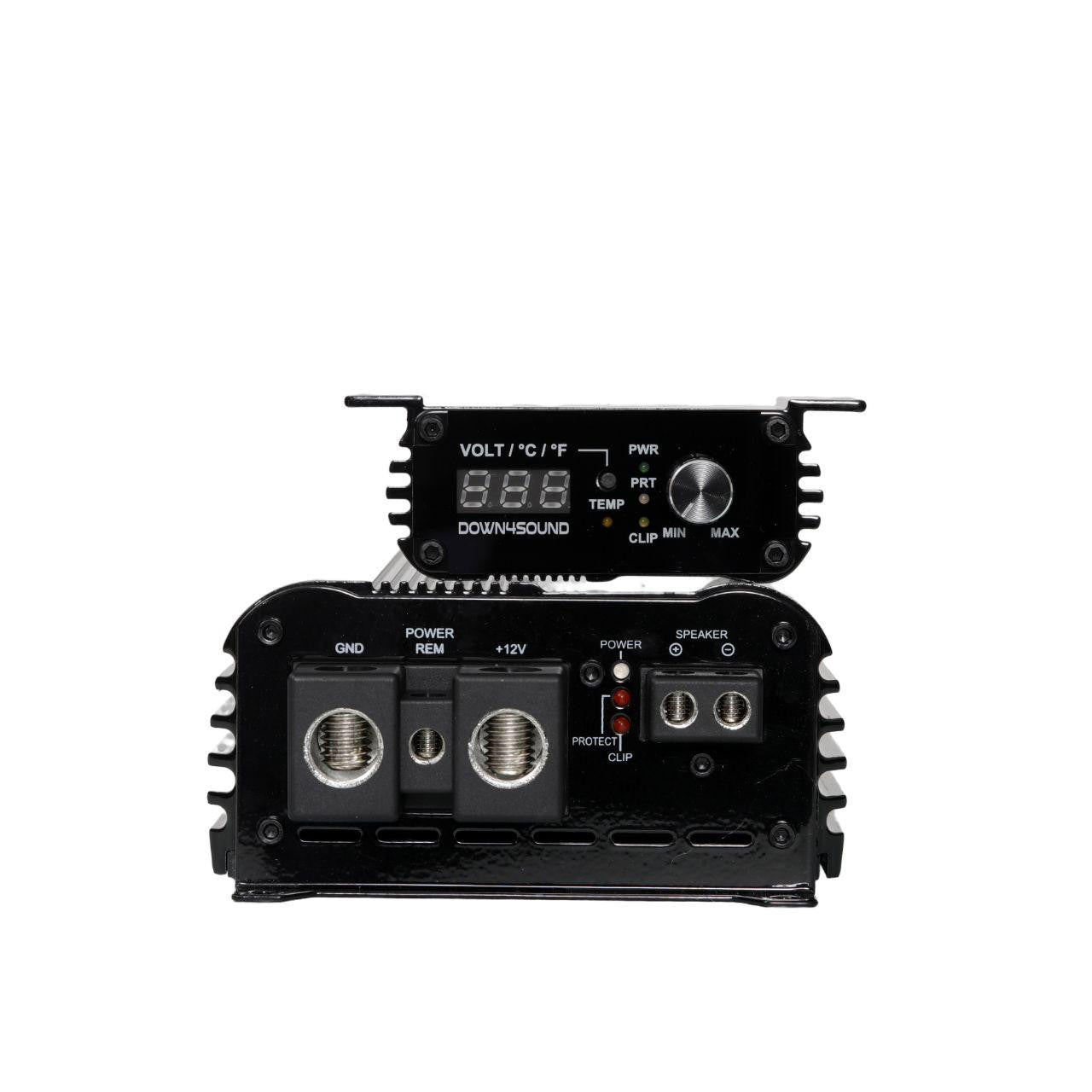

Heavy-Duty Terminals:
- 0 Gauge Power/Ground Inputs: Ensures stable and powerful operation.
- Up to 8 Gauge Speaker Terminals: Supports larger wires for secure and reliable speaker connections.

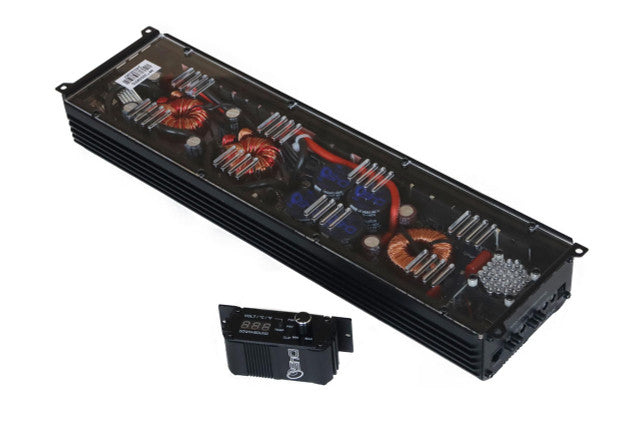

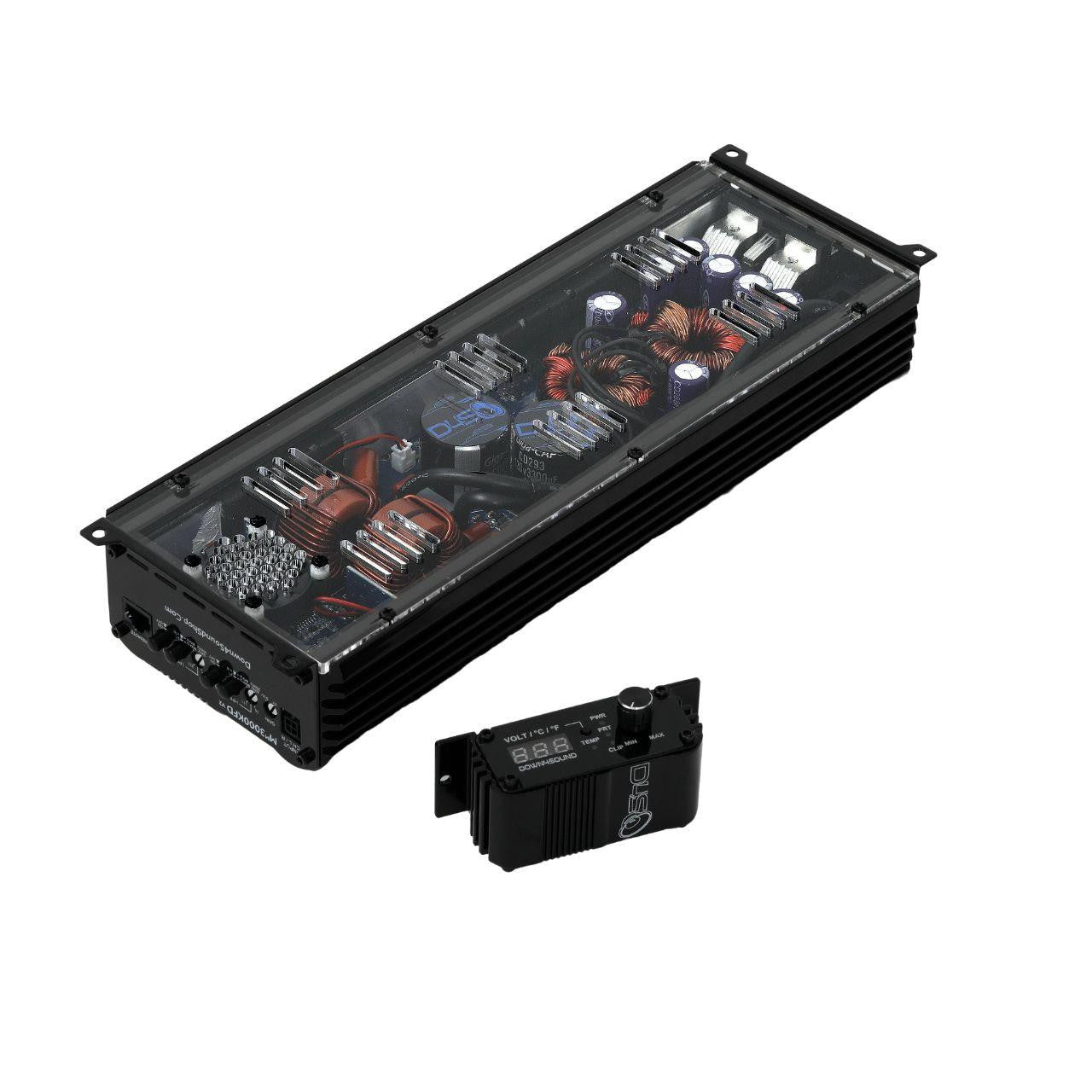

- High Purity Copper PCB: Delivers consistent, high-quality signal transmission for superior audio performance.
