Description

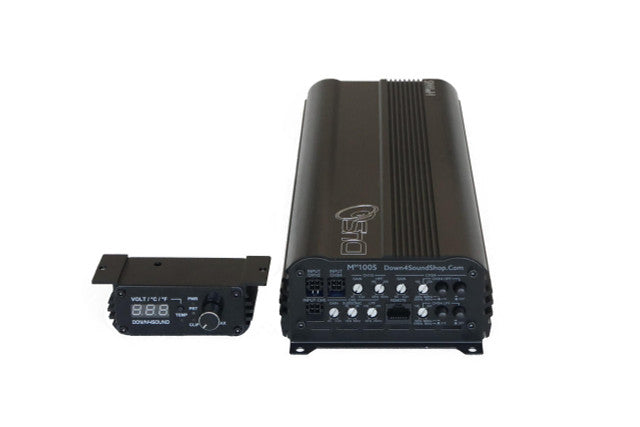

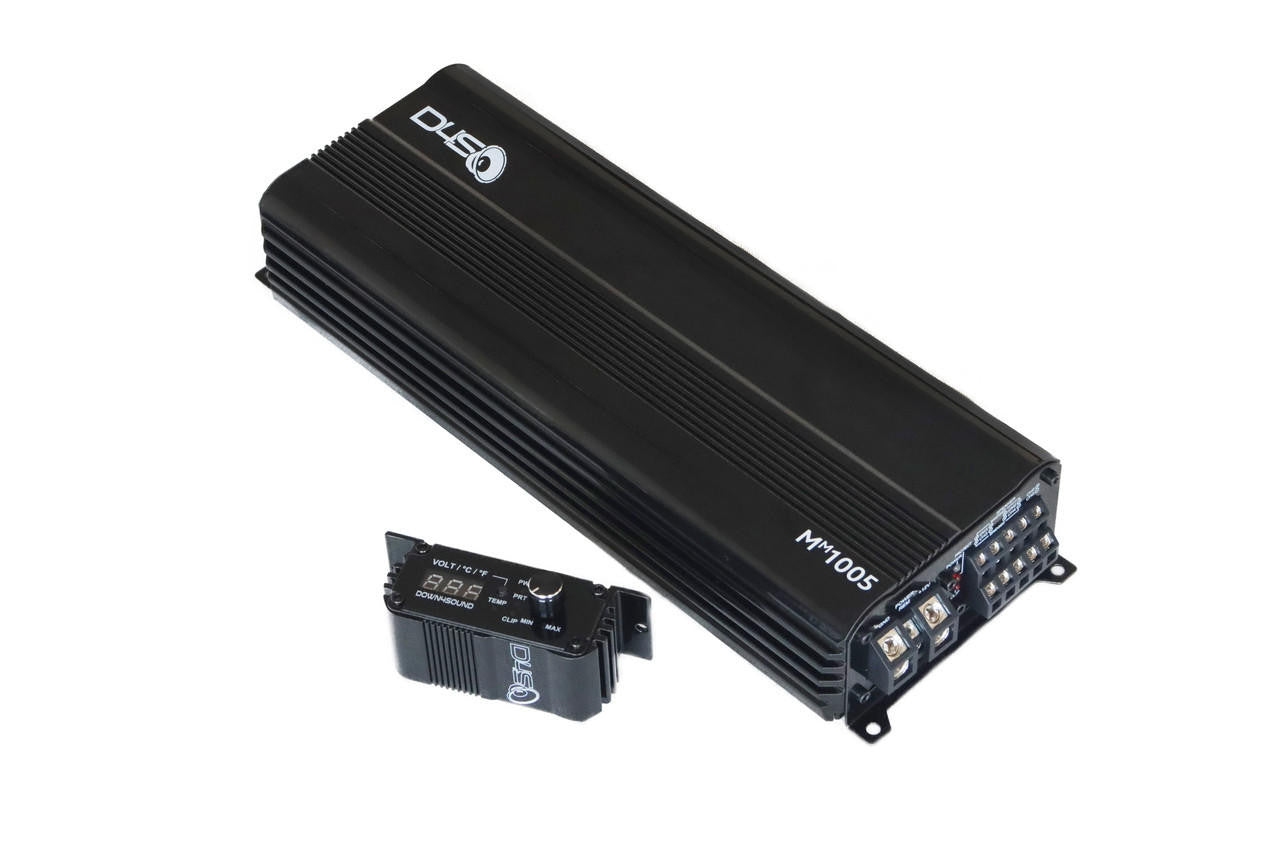

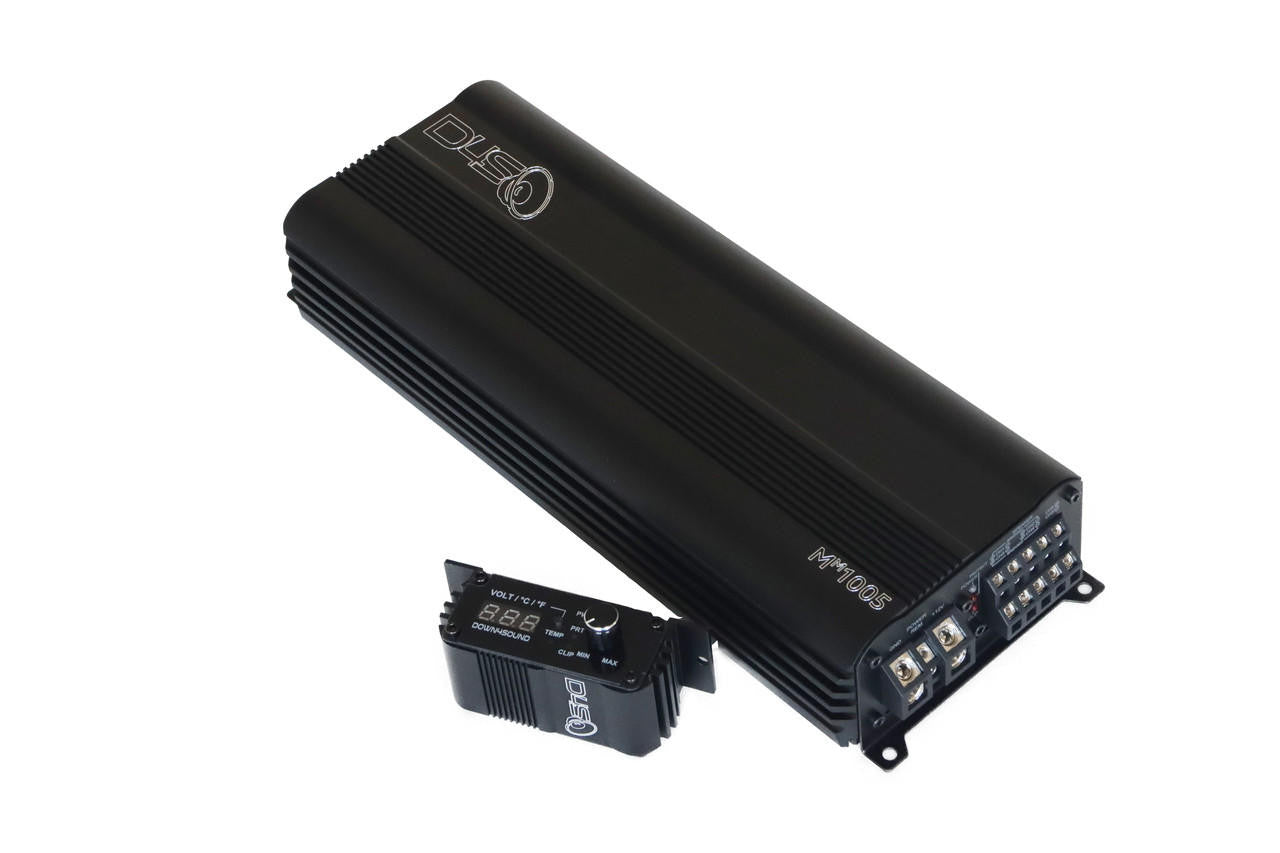

Prepare to take your car audio system to the next level with the Down4Sound MM1005 (MINI MAXX) - BLACK, a powerful 5-channel amplifier designed to deliver exceptional sound quality and performance.
Key Features:
- FULL RANGE & DIGITAL 5 CHANNEL AMPLIFIER
- CH1-CH4 STABLE INTO 2OHM STEREO OR 4OHM BRIDGED
- CH5 STABLE INTO 1OHM MONO
- HIGH SPEED MOSFET POWER SUPPLY
- VARIABLE HIGH PASS FILTER
- VARIABLE HIGH PASS FILTER X10 FOR CH3 & CH4
- LOW PASS FILTER MULTIPLY X10 FOR CH3 & CH4
- BAND PASS FILTER CAPABLE FOR CH3 & CH4
- VARIABLE SUBSONIC FILTER
- 4 WAY PROTECTION CIRCUITS (THERMAL, HIGH & LOW VOLTAGE, SPEAKER TEMPERATURE DISPLAY, SHORT AND DC)
- REMOTE BASS KNOB WITH VOLTMETER & SHORT AND DC

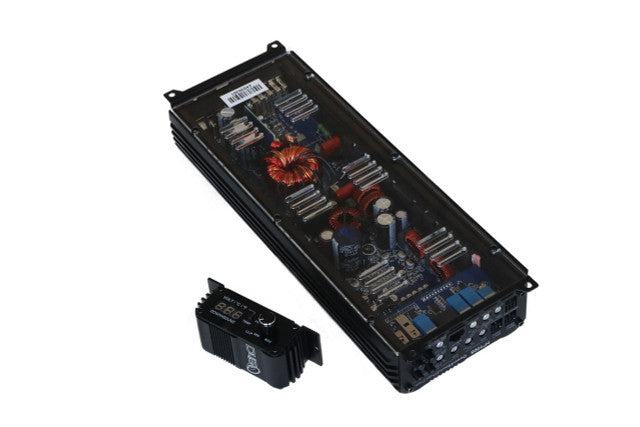

- HIGH PURITY COPPER PRINTED CIRCUIT BOARD

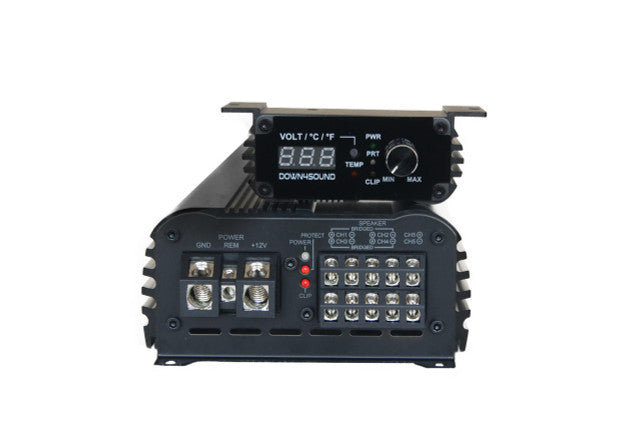

- 4 GAUGE POWER / GROUND TERMINALS
Specifications:
- RMS power, 1ohm for CH5: 500W x 1
- RMS power, 2ohm: 120W x 4 + 400W x 1
- RMS power, 4ohm: 80W x 4 + 250W x 1
- RMS power, 4ohm Bridged: 260W x 2 + 250W x 1
- Frequency Response: 10Hz - 23KHz for CH1 - CH4, 11Hz - 260Hz for CH5
- High Pass Filter (CH1 & CH2): 20Hz - 5KHz
- High Pass Filter (CH3 & CH4): 20(200)Hz - 800(8K)Hz, MULTIPLY X10
- Low Pass Filter (CH3 & CH4): 50(500)Hz - 800(8K)Hz, MULTIPLY X10
- BANDPASS FILTER: YES
- Subsonic Filter (CH5): 10Hz - 50Hz
- Low Pass Filter (CH5): 35Hz - 250Hz
- Remote Bass Knob: Voltmeter & Temperature display remote control included
- Input Sensitivity: 6V - 0.2V
- Signal to Noise Ratio: 92dB <
- Total Harmonic Distortion (T.H.D @ 4ohm): Less than 0.1%
- Fuse Rating: 80A
- Length (inches): 12.20"
- Width x Height (inches): 4.87" W x 2.13" H
Power up your car audio system with the Down4Sound MM1005 (MINI MAXX) - BLACK and experience a new level of sound quality and performance.
