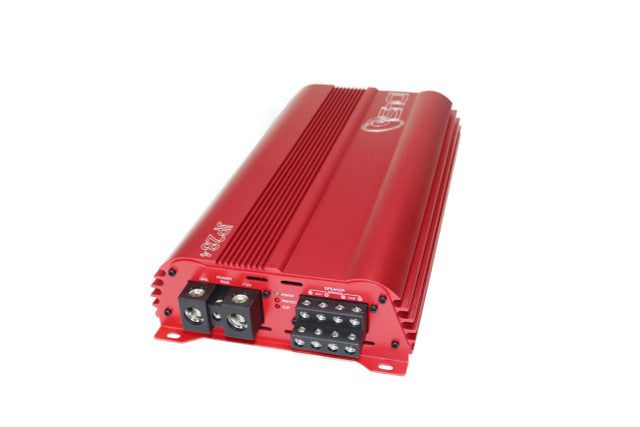

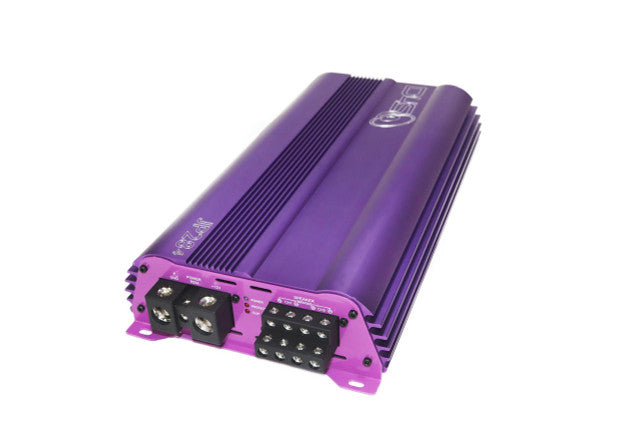

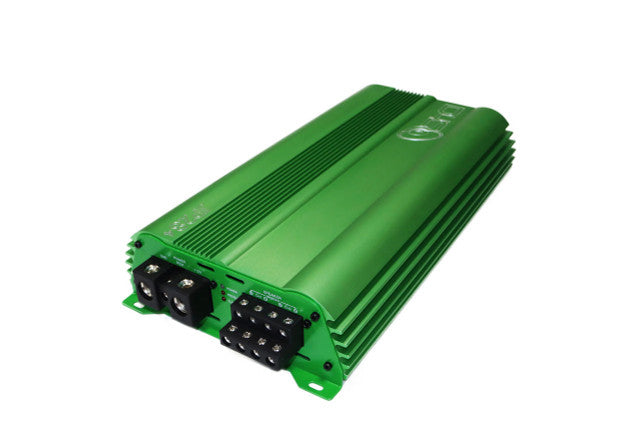

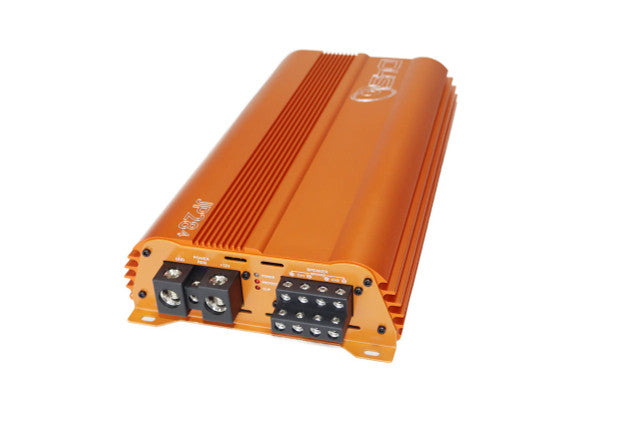

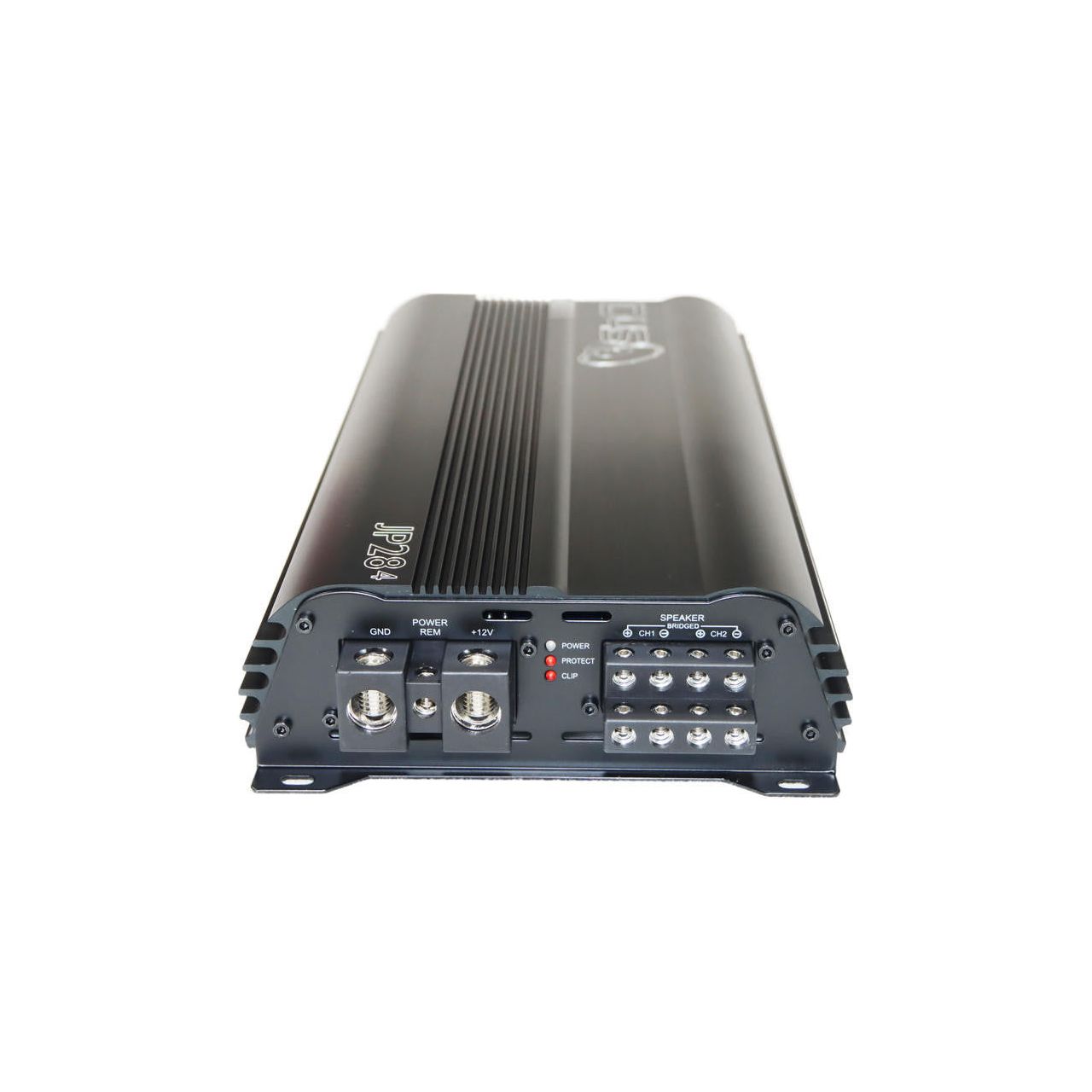

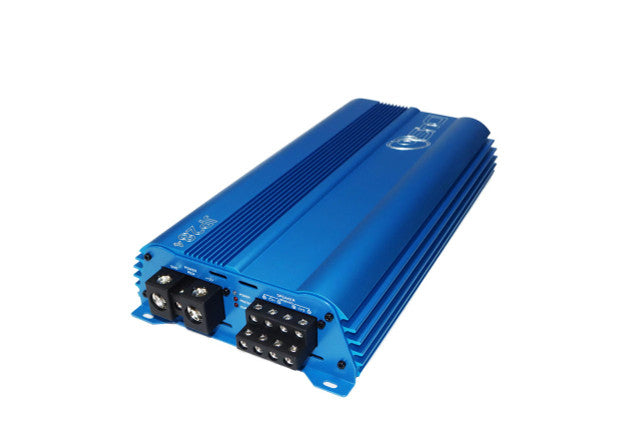

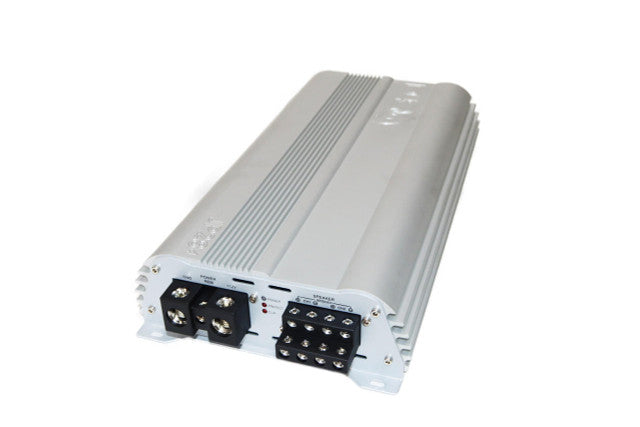

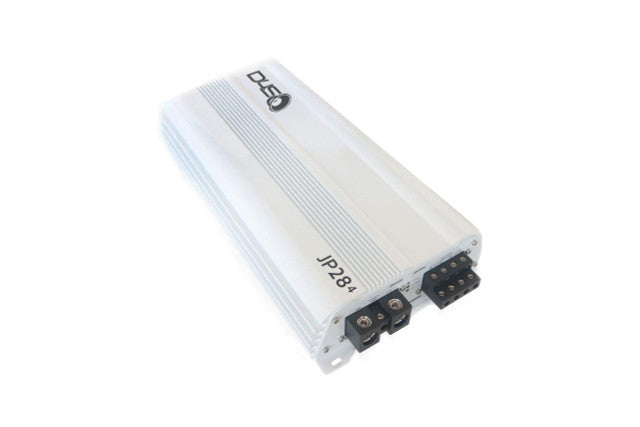

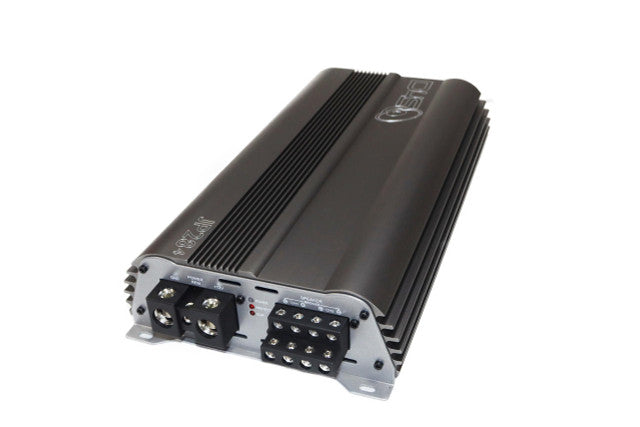

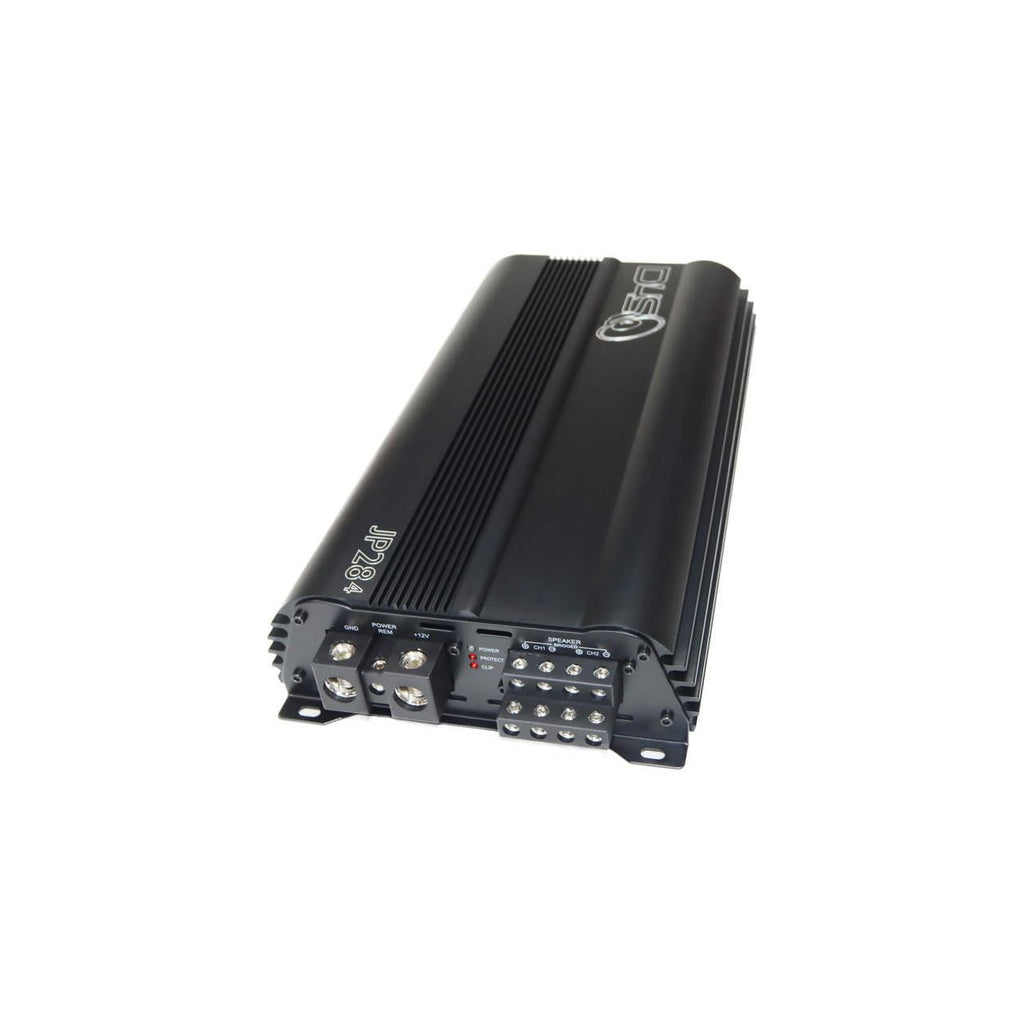

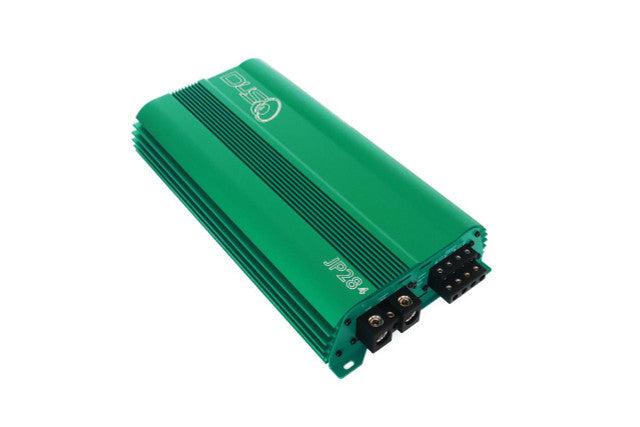

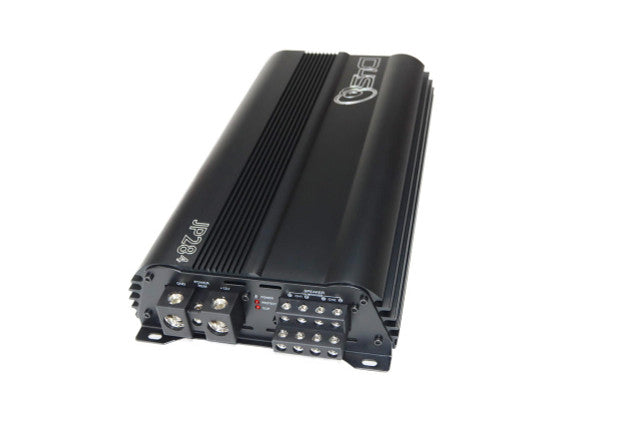

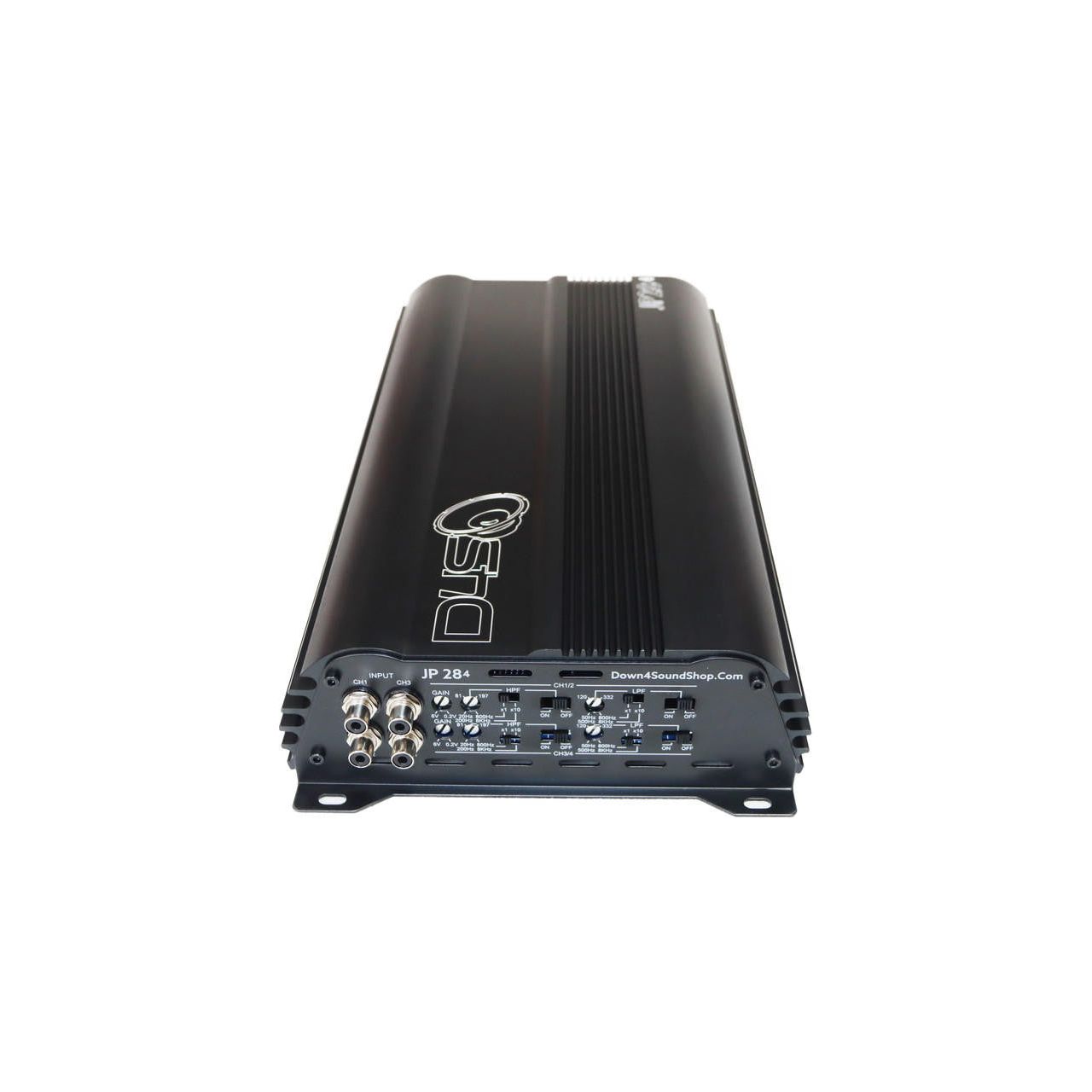

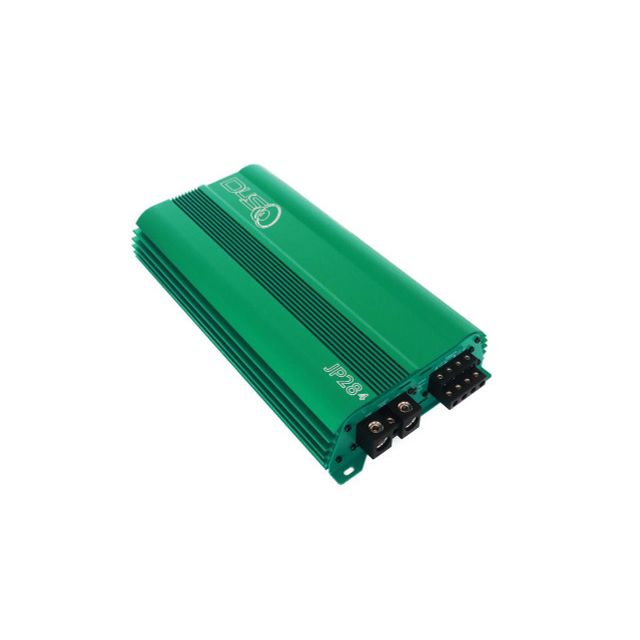

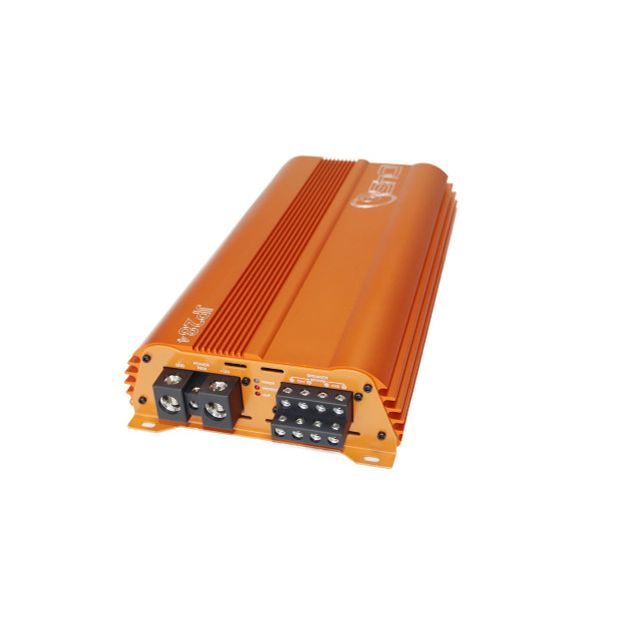

Down4Sound JP284 3000W 4-Channel Amplifier

Introducing the JP284 CLASS D Amplifier: The Ultimate 4-Channel Power Dynamo The brand-new JP284 is here, setting new standards in car audio amplification. This Class D amplifier is not only a testament to power but also to precision, ensuring that your audio experience is unparalleled. Its unique features, combined with its sophisticated black hue, make it an essential choice for audio enthusiasts seeking top-tier performance. Dive deep into its specifications and discover why the JP284 is a favorite among the audiophile community.

Specifications:

• 4 Ohm RMS Power: 284W x 4 channels
• 2 Ohm RMS Power: 460W x 4 channels
• 4 Ohm RMS Bridged Power: 888W x 2 channels
• Frequency Response: 10Hz – 23KHz
• Signal to Noise: 95dB
• Damping Factor: 150
• Input Sensitivity: 6V – 0.2V
• CH1/2 & Ch3/4 Filters:
  • High Pass Filter: 20Hz – 800Hz with a multiplier of x1, x10 (200Hz-8KHz)
  • Low Pass Filter: 50Hz – 800Hz with a multiplier of x1, x10 (500Hz-8KHz)
  • Bandpass Capable
  • Clip in/Clip out for Ch1/2 & Ch3/4
• Input Connections:
  • 0 Gauge Input for Power and Ground
  • Up to 12 Gauge Input on Speakers
  • Tiffany Style RCA Connection
• Working Voltage: 9 to 15.5 Volts
• Dimensions: 340mm L x 190mm W x 57mm H (13.38 x 7.48 x 2.24 inches)

Elevate your car audio game with the JP284. Secure yours now and immerse yourself in unparalleled sound quality.
