Description
Specifications

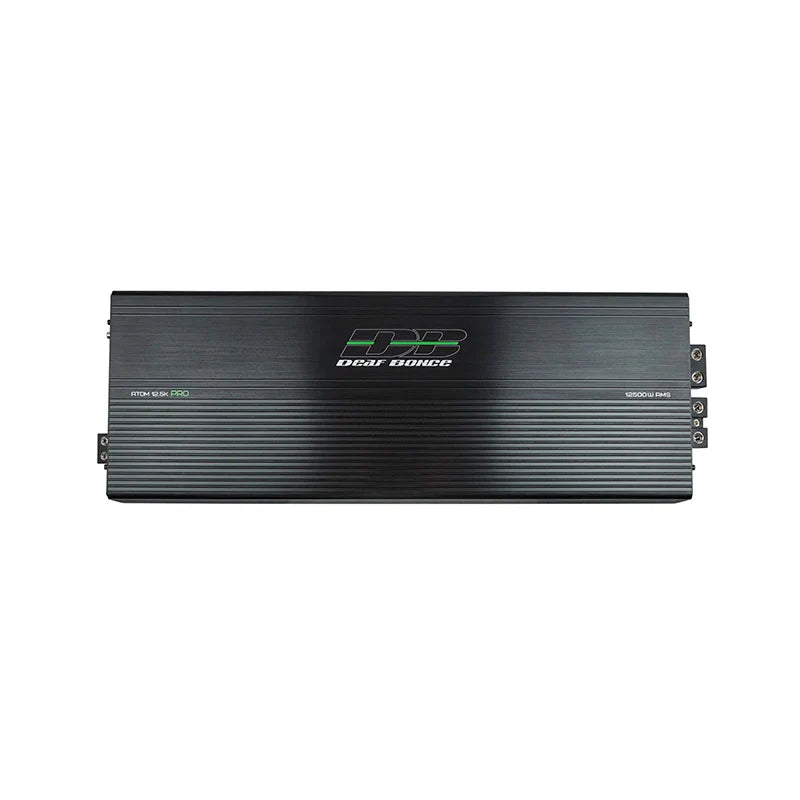

Model | ATOM 12.5K PRO |
Class | D |
Number of the channels | 1 |
Frequency response | 10 - 250 Hz |
1 Ohm RMS Power (14.4 V) | 12500 W |
1 Ohm RMS Power (12 V) | 10200 W |
2 Ohm RMS Power (14.4 V) | 6950 W |
4 Ohm RMS Power (14.4 V) | 3870 W |
Minimum permissible load on the channel | 1 Ohm |
Low pass filter | 40 - 250 Hz |
Crossover | 12 dB/Oct |
Subsonic filter | 10 - 50 Hz |
Bass frequency adjustment | 35 - 90 Hz |

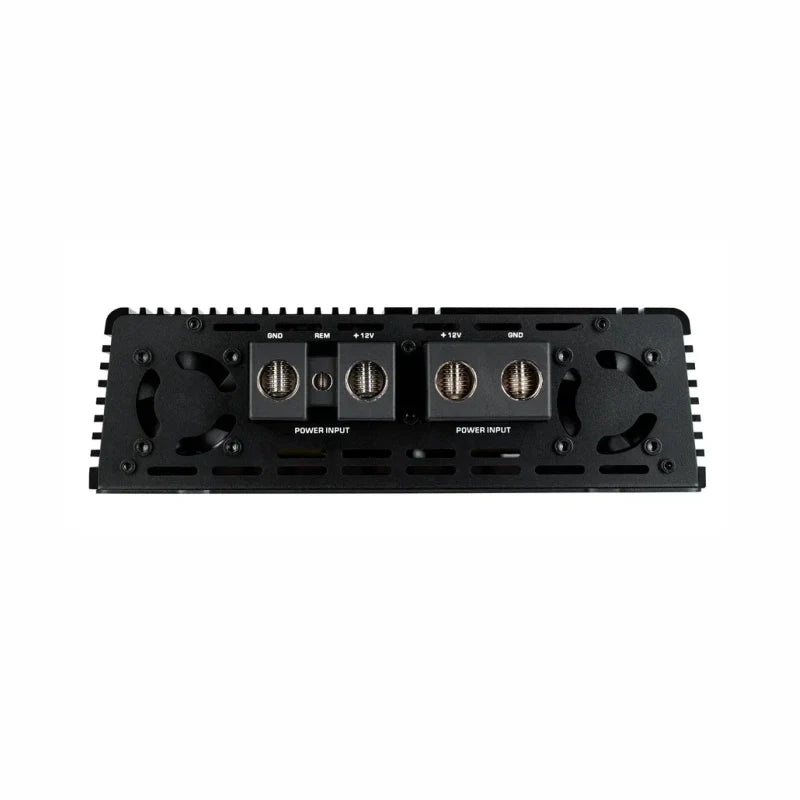

Input terminal | 0 Ga |
Output terminal | 4 Ga |
Working voltage | 9 - 15 V |
Signal-to-noise ratio | ≥ 85 dB |
Size (WxLxH) | 24 x 8.6 x 2.6 inch |
